OcdFileImport: Fix import of Rectangle symbols and objects - #2043
Merged
Conversation
dl3sdo
commented
Feb 22, 2022
MemberAuthor

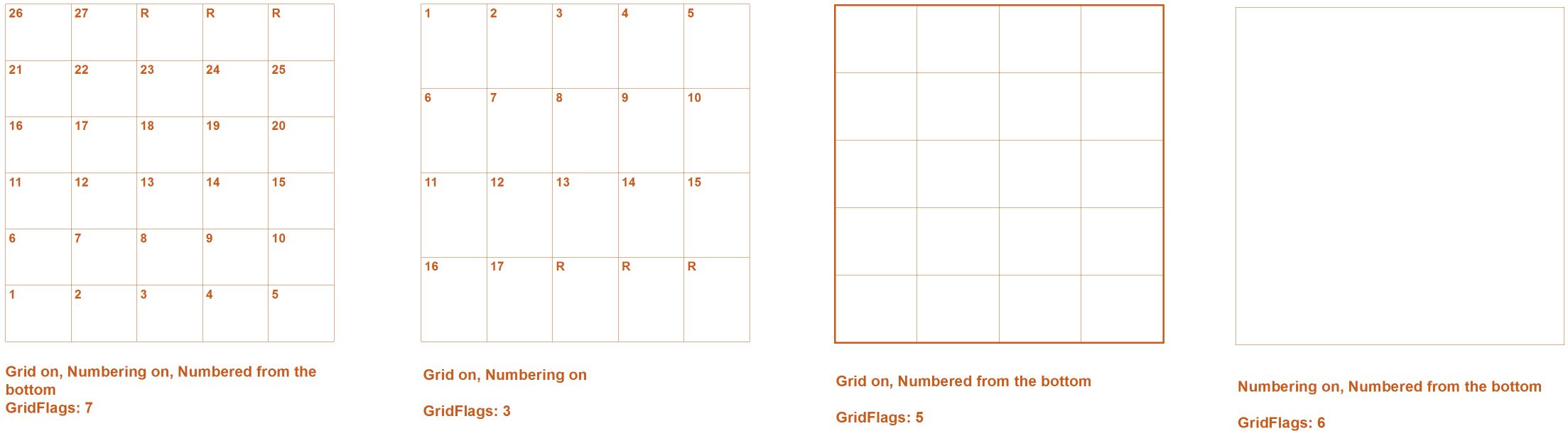

Please find attached an .ocd12 sample file and a screenshot how it appears in OCAD12: |
The 'GridFlags' field consists of 3 bits: 1=Grid On, 2=Numbering On, 4=Numbered from the bottom The symbol import previously only considered 'Grid On' and mapped 'Numbered from the bottom' to Bit 1 instead. When importing Rectangle objects the 'Numbered from the bottom' property was applied just the other way around.
