A complete solution for interfacing with the BMW I-Bus and K-Bus using Arduino, ESP32, STM32 or Raspberry Pi Pico — sniff bus traffic, read live data and inject commands to control lights, windows, locks and multimedia on classic BMWs (E38, E39, E46, E53 and more).
An Arduino / ESP32 interface and library for the BMW I-Bus (Instrumentation Bus) and K-Bus (Body Bus). It lets you sniff bus traffic, decode messages in real time, and inject commands to control lights, windows, locks and multimedia modules on classic BMWs — using microcontrollers like Arduino, ESP32, STM32 or Raspberry Pi Pico.
The I/K-Bus is a single-wire serial protocol used in classic BMW models (E38, E39, E46, E53, etc.), operating at 9600 baud, 8E1 (even parity). This repository contains the source code, an Arduino library and hardware schematics needed to bridge this automotive protocol with modern development boards.
I design custom automotive diagnostic tools, firmware and apps — this is what I do professionally. Whether you need a full product or just the communication layer, I can help.
- Custom protocol implementation — BMW I/K-Bus, K-Line (ISO 9141-2 / KWP2000), CAN bus, and other manufacturer-specific protocols (VAG KW1281, and more)
- Custom bus & protocol communication code — low-level drivers and communication routines for any automotive bus or proprietary/custom protocol you need
- ECU security access — seed-key (security access) algorithms and unlock routines for KWP2000 / UDS ECUs
- Custom mobile & desktop apps — Android / iOS / web companion apps to visualize, log and control your device
- Bespoke hardware — diagnostic shields & PCBs designed around your requirements
- ECU communication & reverse engineering — bus sniffing, packet decoding, module control, undocumented buses
- Embedded firmware — Arduino, ESP32, ESP8266, STM32, Raspberry Pi Pico
Need something else related to automotive communication or electronics? Just reach out — if it involves cars, buses or embedded hardware, I can most likely help.
Have a project in this space? → 📧 muksin.muksin04@gmail.com
Bus Communication
- 🔍 Real-time sniffing — monitor and decode every message on the bus.
- 🔁 Bi-directional control — not just reading; inject packets to control car modules.
- 📦 Packet decoding — source, length, destination and data parsing via the
IbusSeriallibrary. - 💤 Sleep / wake handling — automatic bus sleep support to avoid draining the battery.
Hardware & Platforms
- 🧩 Multi-platform — tested on Arduino Nano; compatible with ESP32, STM32, Raspberry Pi Pico and more.
- 🛠️ Hardware flexibility — schematics for optocouplers, TH3122 / ELMOS and MCP2025.
- ⚡ Standard bus timing — 9600 baud, 8E1, single-wire, matching the classic-BMW spec.
Every I/K-Bus message follows the same structure:
| Byte | Field | Description |
|---|---|---|
| 0 | Source | Sender module ID |
| 1 | Length | Number of bytes from Destination to Checksum |
| 2 | Destination | Target module ID |
| 3 … n-1 | Data | Command byte + payload |
| n | Checksum | XOR of all preceding bytes |
| Model | Series | Period | I-Bus | K-Bus |
|---|---|---|---|---|
| E31 | 8 Series | 1989–1999 | ✅ | |
| E38 | 7 Series | 1999–2001 | ✅ | ✅ |
| E39 | 5 Series | 1995–2004 | ✅ | ✅ |
| E46 | 3 Series | 1997–2006 | ✅ | |
| E52 | Z8 | 2000–2003 | ✅ | |
| E53 | X5 | 1999–2006 | ✅ | ✅ |
| E83 | X3 | 2003–2010 | ✅ | |
| E85 | Z4 | 2002–2008 | ✅ | |
| E87 | 1 Series | 2004–2013 | ✅ |
First, build a bus interface from one of the Schematics below and tap into the bus — see Where to Connect. Then install the library and pick an example that fits your goal:
- Install the library — BMW I/K Bus Library in the Arduino IDE.
- Choose an example sketch:
Reads and decodes all traffic on the bus and prints it to a debug serial — the fastest way to see what's happening.
👉 Sketch:Codes/Basic_Code
Example for reading and sending commands to K-Bus modules on the BMW E46.
👉 Sketch:Codes/E46_KBus_Code
- Select your board (Arduino Nano, ESP32, …), set the COM port, and upload.
⚠️ Disclaimer: This is a hobby / development project. I am not responsible for any issues or damage that may occur during testing. Injecting packets onto a live vehicle bus can affect its modules — proceed with caution and at your own risk.
Common, practical places to tap the K-Bus wiring:
- CD Changer connector – trunk
- Radio K-Bus wiring
- K-Bus junction block (above the fuse box)
The easiest place to connect an Arduino or similar interface.
- Provides +12V, GND and K-Bus in one connector
- CD changer is optional, but the wiring is usually present
- Located in the trunk, driver's side, behind the trim
Connector: X18180 (BMW WDS) · K-Bus wire: White/Red with yellow dots · Ground: Brown · 12V: Red/Green
A central distribution point for the K-Bus.
- K-Bus wire color: White/Red with yellow dots
- Tap the K-Bus here; take +12V and GND from another location.
Interfacing a 5V / 3.3V microcontroller with the 12V single-wire bus requires level shifting. Pick the approach that suits your project:

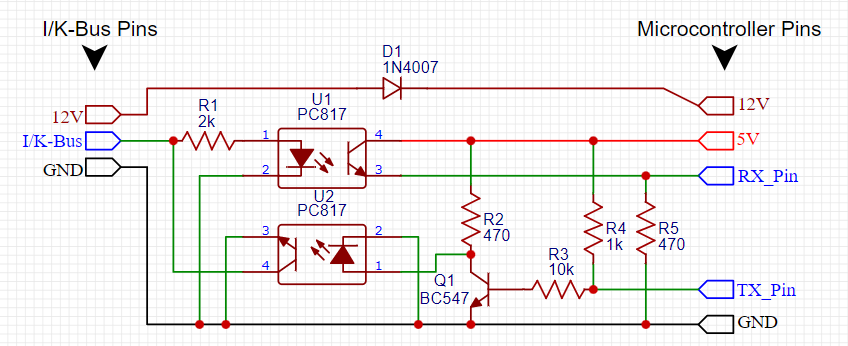

A simple, low-cost and electrically isolated interface — great for prototyping and safe experimentation.

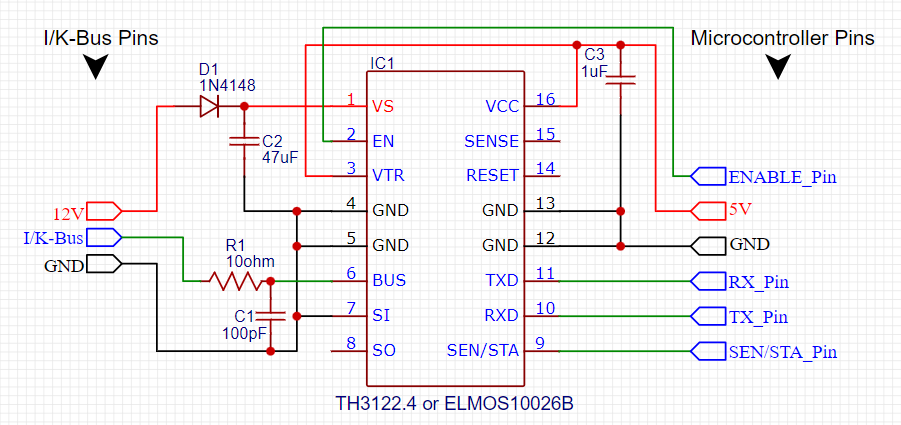

Dedicated BMW bus transceiver ICs with built-in level shifting and protection — the most reliable, production-grade option.

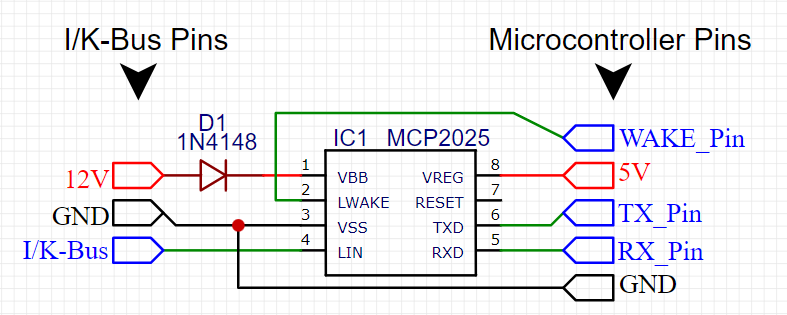

A LIN transceiver-based interface — a compact, standards-based alternative.
Part of a full automotive communication & diagnostics ecosystem:
| Firmware & Readers | Libraries | Manufacturer Protocols | UI |
|---|---|---|---|
| OBD2 K-line Reader | OBD2 K-Line Library | BMW I/K Bus | OBD2 Diagnostic UI |
| OBD2 CAN Bus Reader | OBD2 CAN Bus Library | VAG KW1281 |
